How to Read MTF Charts to Know What Your Lens Is Really Capable Of

MTF charts can look more like medical scans than photography tools, full of squiggly lines and technical labels. Many photographers skip past these technical graphs, missing out on valuable insights about their lenses.

But once you crack the code, MTF charts become powerful tools that reveal how your lens will actually perform in real shooting situations. They help you make smarter buying decisions and understand why some lenses render images the way they do.

What Are MTF Charts?

MTF stands for Modulation Transfer Function. That's a fancy way of saying "how well a lens preserves contrast and detail." These charts show how a lens transmits light from the object to the image sensor.

When you look at an MTF chart, you're essentially seeing a graphic representation of a lens's sharpness and contrast. Lens manufacturers provide these charts to show how their lenses perform under controlled conditions.

MTF charts measure a lens's ability to reproduce fine details and maintain contrast between light and dark areas. Higher numbers on these charts generally indicate better optical performance.

Many professional photographers consult these charts before investing in expensive glass. They provide objective data about lens performance rather than relying solely on marketing claims.

The Science Behind MTF

At its core, MTF measures how well a lens can maintain the contrast of line pairs at various distances from the center of the image. The concept comes from optical engineering and has become the standard way to quantify lens performance.

The higher the MTF value (usually shown as a percentage), the better the lens preserves contrast. A perfect lens would have an MTF of 100% across the entire frame, but such a lens doesn't exist in the real world.

Why MTF Charts Matter for Photographers

MTF charts save you money and disappointment. Instead of buying a lens based on brand reputation or price alone, these charts give you insight into actual optical performance.

When shopping for lenses, MTF data helps you predict how sharp your images will be, especially at the edges and corners where many lenses struggle. This information is particularly valuable for landscape, architecture, and product photographers who need edge-to-edge sharpness.

Portrait photographers can use MTF charts to find lenses with pleasing characteristics for their work. Some portrait specialists actually prefer lenses with specific MTF signatures that render softer, more flattering images toward the edges.

The charts also reveal performance trade-offs. A lens might have excellent center sharpness but poor corner performance, or good contrast but less resolution. These factors affect your images in different ways depending on what you shoot.

Good MTF performance correlates strongly with that elusive quality photographers call "micro-contrast",  the lens's ability to render fine textures and subtle tonal transitions.

Understanding MTF is just as important as knowing how to set up photography lights for optimal contrast and clarity.

The Key Elements of MTF Charts

MTF charts typically use a horizontal X-axis and a vertical Y-axis. The horizontal axis shows the distance from the center of the image toward the edge, usually measured in millimeters. The vertical axis shows the contrast reproduction value, typically from 0 to 1 (or 0% to 100%).

Graph Structure Basics

The left side of the chart represents the center of the image, while the right side shows performance toward the edges and corners. This layout makes it easy to see how performance changes across the frame.

Most charts display multiple lines, each representing different measurement parameters. These lines give you a comprehensive view of the lens's capabilities.

The height of each line indicates contrast reproduction. Higher lines mean better contrast and sharpness. When lines start to dip, especially toward the right side of the graph, it shows where the lens begins to lose quality.

Line Types and What They Show

MTF charts typically show several different lines:

• Sagittal lines (solid lines): Measure contrast for lines running from the center of the image to the edge

• Meridional lines (dotted lines): Measure contrast for lines running perpendicular to sagittal lines

When sagittal and meridional lines diverge significantly, the lens will produce astigmatism. This optical flaw makes points of light appear stretched rather than perfectly round.

How to Read MTF Chart Lines

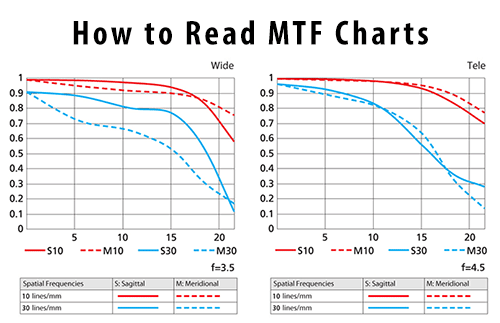

Image Source

The most common MTF charts show performance at different frequencies, typically 10 lines per millimeter (lp/mm) and 30 lp/mm.

The 10 lp/mm vs. 30 lp/mm Battle

The 10 lp/mm measurement (thicker lines) indicates contrast reproduction for larger structures in your image. This correlates with the overall "pop" and three-dimensional look of your photos.

The 30 lp/mm measurement (thinner lines) shows how well the lens reproduces fine details. This matters for capturing texture and small elements in your photos.

Top-tier lenses maintain high values for both measurements across much of the frame. Budget lenses often show decent 10 lp/mm performance but drop quickly in 30 lp/mm performance.

When the lines for sagittal and meridional measurements stay close together, the lens will render out-of-focus areas (bokeh) more smoothly and naturally. When they separate widely, bokeh can appear nervous or distorted.

Reading Line Height

MTF values typically range from 0 to 1 (or 0% to 100%), with higher numbers indicating better performance. Here's a general interpretation:

• 0.8-1.0: Exceptional performance

• 0.6-0.8: Very good performance

• 0.4-0.6: Average performance

• Below 0.4: Poor performance

The specific height matters less than the overall pattern across the frame. A lens that maintains consistent performance from center to edge is often more useful than one with extremely high center values that drop dramatically toward the edges.

To make the most of these details, especially in nature settings, check out these landscape photography tips that rely on high optical performance.

What the Numbers Mean in MTF Charts

MTF charts contain several key numerical values that translate directly to real-world performance. Understanding these numbers helps you predict how a lens will behave in various shooting situations.

Contrast Percentages

The vertical axis values represent contrast reproduction. A value of 0.8 (80%) means the lens reproduces 80% of the original contrast in the test pattern.

For 10 lp/mm measurements, values above 0.8 at the center indicate excellent contrast performance. For 30 lp/mm, values above 0.6 at the center suggest excellent resolution of fine details.

Many photographers focus too much on center performance. For practical shooting, the values at 10-15mm from center often matter more since that's where many subjects in real-world compositions fall.

Distance from Center Interpretation

Most full-frame MTF charts show measurements up to 20-24mm from center. This distance corresponds to the corners of a full-frame sensor.

The rate at which MTF values decline from center to edge reveals important characteristics:

• Gentle, gradual decline: Consistent performance across the frame

• Steep initial drop that levels off: Good for portraits where center sharpness matters most

• Cliff-like drop at a certain point: Indicates field curvature issues

Some manufacturers publish MTF charts at multiple apertures. Comparing the wide-open MTF to the stopped-down MTF (usually at f/8) shows the lens's improvement potential when stopped down.

How Different Lens Types Show Up on MTF Charts

Different lens designs produce characteristic MTF patterns that help you understand their strengths and weaknesses.

Prime vs. Zoom Lens Patterns

Prime lenses typically show higher overall MTF values compared to zoom lenses covering the same focal length. This is one reason primes are often preferred in niche areas like architecture photography, where precision matters.

Zoom lenses often show varying performance across their focal range. Manufacturers usually publish MTF charts for the widest, middle, and longest focal lengths to give a complete picture.

Modern high-end zoom lenses can rival prime lens performance at certain focal lengths. Their MTF charts will show curves nearly matching those of quality primes.

Wide-Angle vs. Telephoto Characteristics

Wide-angle lenses typically show more dramatic drop-off toward the edges on MTF charts. This reflects the greater optical challenges in wide-angle design.

Telephoto lenses often maintain more consistent performance across the frame. Their MTF charts typically show flatter lines from center to edge.

Fast aperture lenses (f/1.4, f/1.2) usually show lower MTF values wide open than slower lenses. This is why an f/1.8 lens sometimes outperforms an f/1.4 lens when both are used at f/1.8.

Using MTF Charts to Compare Lenses

When shopping for lenses, MTF charts provide objective data for comparison. Here's how to use them effectively.

Step-by-Step Comparison

1. Compare MTF charts only from the same manufacturer, as testing methods vary between companies

2. Look at the same line types (10 lp/mm or 30 lp/mm) across both lenses

3. Note center performance first, then edge performance

4. Pay attention to where the lines begin to drop significantly

5. Consider how the performance profile matches your typical shooting subjects

Remember that price often correlates with MTF performance, but not always. Sometimes, a modestly priced lens will show surprisingly good MTF characteristics in areas that matter for your photography.

What Matters Most for Your Photography

For landscape photography, look for lenses with high MTF values across the entire frame, especially at 30 lp/mm.

Portrait photographers might prefer lenses with excellent center performance but gentler edge performance, as highlighted in this shutter speed guide for portraits. This combination often produces more flattering portraits.

Sports and wildlife photographers should prioritize center performance, as subjects are typically placed in the middle of the frame.

For architectural photography, pay close attention to the separation between sagittal and meridional lines toward the edges. Less separation indicates better correction for astigmatism, which affects straight lines.

The Limitations of MTF Charts

MTF charts are valuable tools, but they don't tell the complete story about lens performance. Understanding their limitations helps you use them appropriately.

What MTF Charts Don't Show

MTF charts don't indicate color rendition, flare resistance, or bokeh quality. These subjective aspects greatly impact the "look" of your images.

They typically don't show performance at different focusing distances. A lens might perform differently at close focus compared to infinity focus.

Most manufacturer MTF charts are theoretical calculations rather than measurements of actual production lenses. This means real-world samples might vary from the published charts.

MTF charts don't reveal focus breathing, focus shift when stopping down, or field curvature characteristics. These factors affect real-world usability.

The charts also don't show how a lens renders three-dimensional space or transitions between in-focus and out-of-focus areas. These qualities contribute significantly to a lens's "character."

Beyond the Numbers

Sample variation between individual copies of the same lens model can sometimes exceed the differences shown on MTF charts between different lens models.

Environmental factors like temperature and humidity can affect lens performance in ways not reflected on MTF charts.

A lens with slightly lower MTF values might still produce more appealing images due to its rendering characteristics or color transmission properties.

For most photographers, actual shooting experience and image results matter more than MTF charts. The charts should inform decisions but not dictate them.

Practical Ways to Apply MTF Chart Knowledge

Now that you understand MTF charts, here's how to apply this knowledge to your photography.

Making Smarter Lens Purchases

Use MTF charts as one factor in your lens selection process. Compare them alongside reviews, sample images, and your budget considerations.

When evaluating a lens system (like deciding between camera brands), compare their overall MTF patterns to see which manufacturer optimizes for characteristics you value.

If you're deciding between similar lenses, MTF charts can reveal meaningful differences that might not be immediately obvious in casual testing.

For specialized photography, prioritize the specific MTF characteristics that matter most for your genre. Portrait, landscape, and sports photographers should look for different MTF strengths.

Matching Lens Characteristics to Your Style

If you shoot mainly centered compositions, center MTF performance should be your priority. If you frequently place important elements near the edges, edge performance becomes crucial.

Consider how a lens's MTF signature might complement your post-processing style. If you typically add contrast in editing, a lens with slightly lower contrast might give you more editing flexibility.

Some photographers intentionally choose lenses with specific MTF characteristics to create a consistent look across their portfolio. This can become part of your artistic signature.

Final Tips for MTF Chart Success

MTF charts seem complex at first, but they become valuable tools with practice. Here are some final tips to help you master them.

Quick Reference Guide

• Higher lines = better performance

• Solid lines = sagittal performance (radial lines)

• Dotted lines = meridional performance (concentric lines)

• Thick lines = low frequency (10 lp/mm), overall contrast

• Thin lines = high frequency (30 lp/mm), fine detail

• Left side = center of image

• Right side = edge/corner of image

Common Misconceptions

• The highest MTF values don't always translate to the "best" lens. A lens with slightly lower but more consistent MTF values might produce more pleasing overall images.

• MTF isn't everything. Factors like build quality, autofocus performance, size, weight, and handling also significantly impact a lens's practical value.

• Manufacturers measure MTF differently, so direct comparison between brands isn't reliable. Canon, Nikon, Sony, and others use different testing methodologies.

• Some photographers obsess over tiny MTF differences that would be imperceptible in real-world images. Don't let perfect be the enemy of good.

• MTF charts represent performance at a single focus distance, usually infinity. Performance may vary at different focus distances, which is particularly important for close-up work.

The more you practice evaluating MTF charts alongside real-world images, the better you'll become at predicting how a lens will perform for your specific needs.

The Bottom Line

MTF charts may look intimidating at first glance, but they're incredibly valuable tools once you know how to interpret them. They cut through marketing hype to show you exactly what a lens can (and can't) do.

The next time you're eyeing that shiny new piece of glass, take a moment to check its MTF chart. Your images, and possibly your wallet, will thank you for making a more informed decision.
